Description

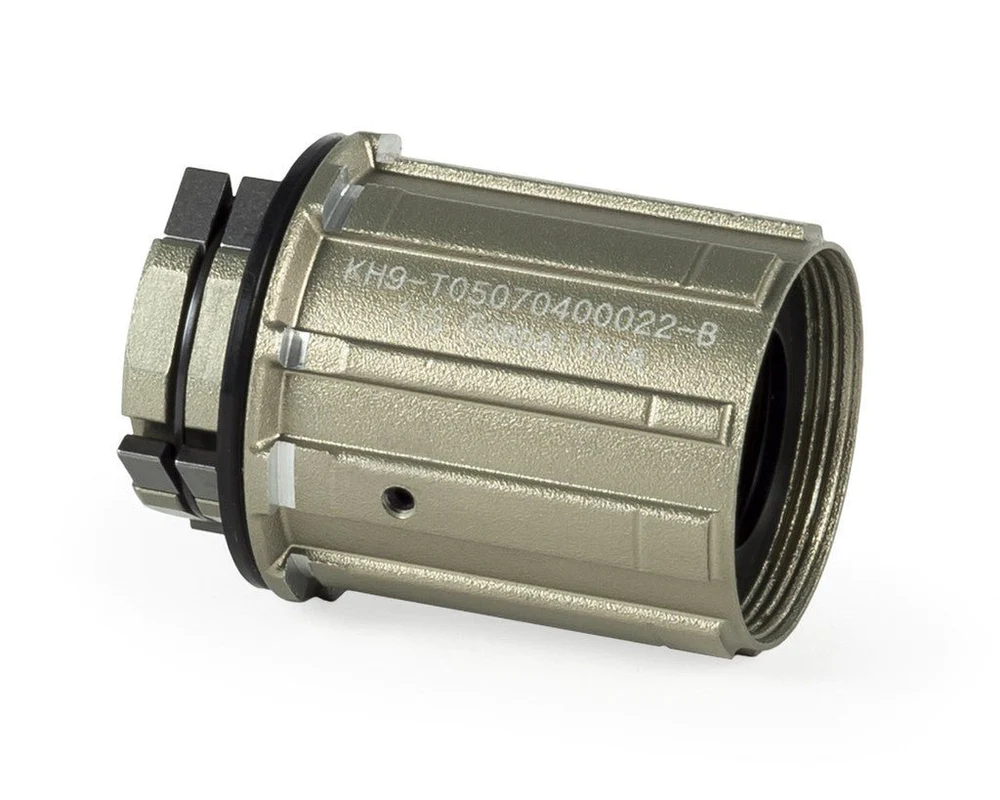

12mm Axle H3 (2006-2008)Â Gold cassette bodies have a smaller 12mm diameter axle. This cassette body was used on most HED wheels built approximately 2006 through Spring 2008. Spacer position and wheel dish are changed to accommodate the spacing differences from Shimano to Campagnolo.
WA026 – Shimano/SRAM 9, 10, 11-speed – H3 ONLY. *Discontinued
15mm Axle, 3-pawl Sonic Hub 2009-2015 HED Sonic hubs use a larger 15mm axle to increase stiffness and decrease weight. Available for Shimano 9/10/11-speed. End caps are specific to cassette configuration. NOTE: The Shimano 11 version is intended as a replacement cassette body for hubs that were originally sold as 11-speed compatible. If you want to upgrade an older HED hub to 11-speed, you will need to look at our 11-speed conversion kit web page. Note also that Sonic hubs have a 3-pawl drive mechanism.

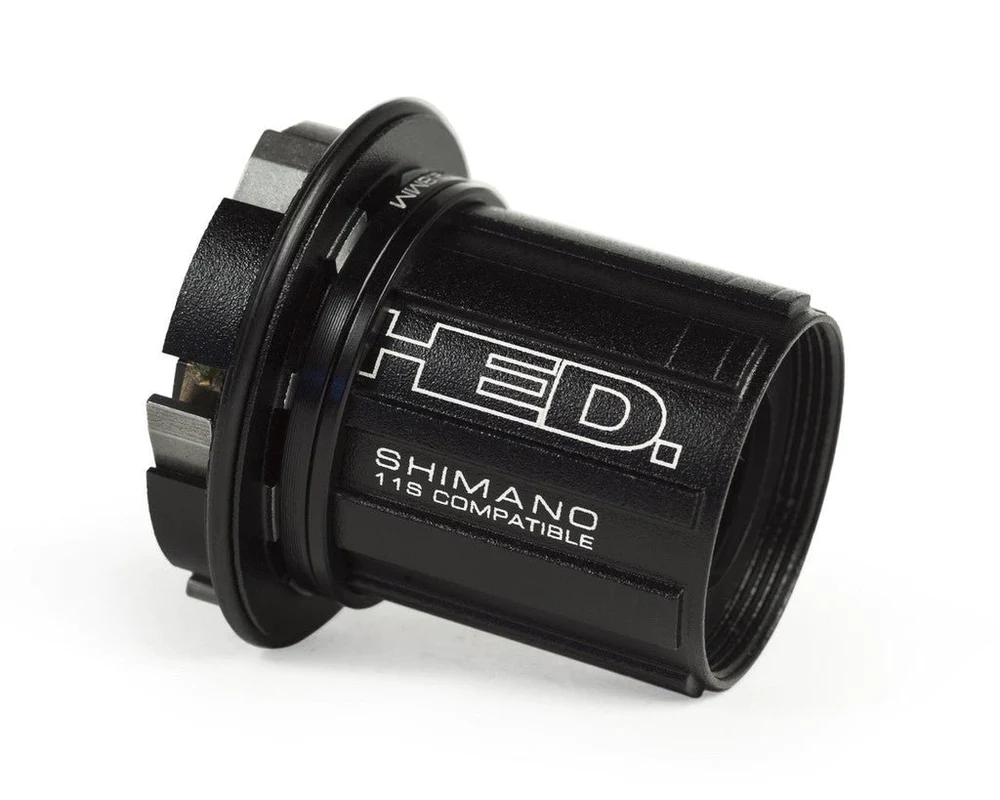

HU651 – Shimano/SRAM 9, 10, 11-speed *not compatible with Campy freehub wheel
5-pawl Pro Rim Brake and Disc Brake, and Brickhouse (2016+) In 2016, we introduced the 5 pawl rear hub in both rim brake and disc brake versions. We also introduced our new Brickhouse fat bike hub set. Both the Pro and Brickhouse hubs use a new super-durable 5-pawl cassette body, with 15mm hub axle.
HU105 – Shimano HG/SRAM 11, 12-speed
HU656 – Shimano Micro Spline 12-speed
HU206 – SRAM XDR Road 12-speed

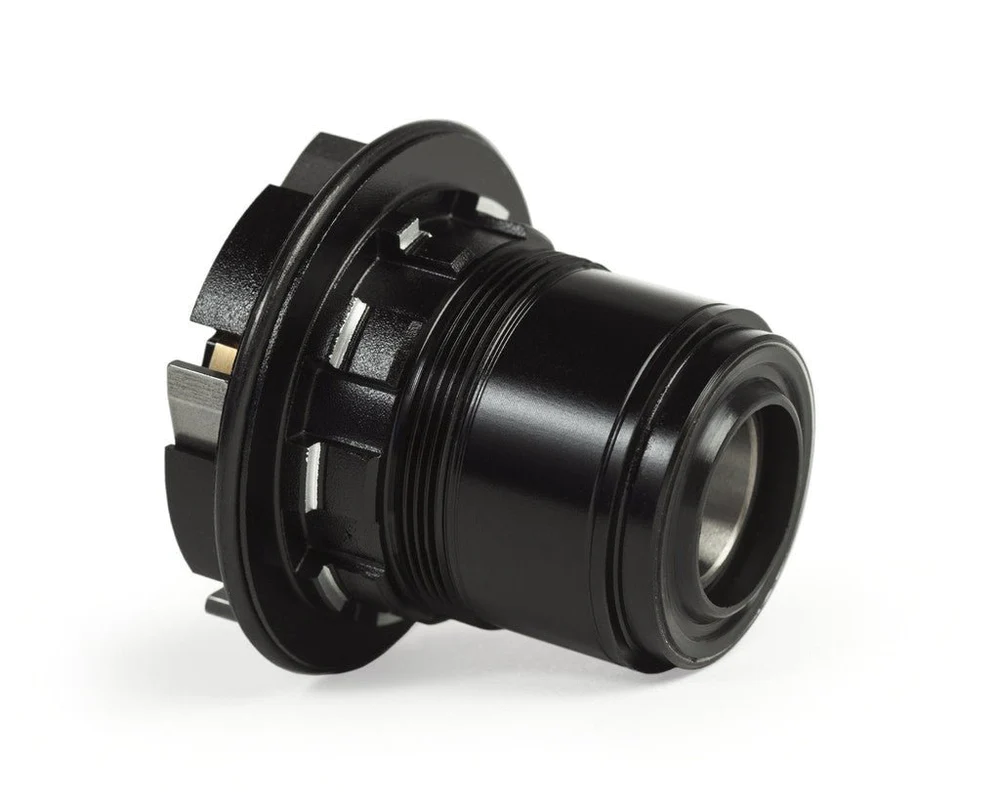

HU207 – Sram XD MTB/Fat bike 12-speed

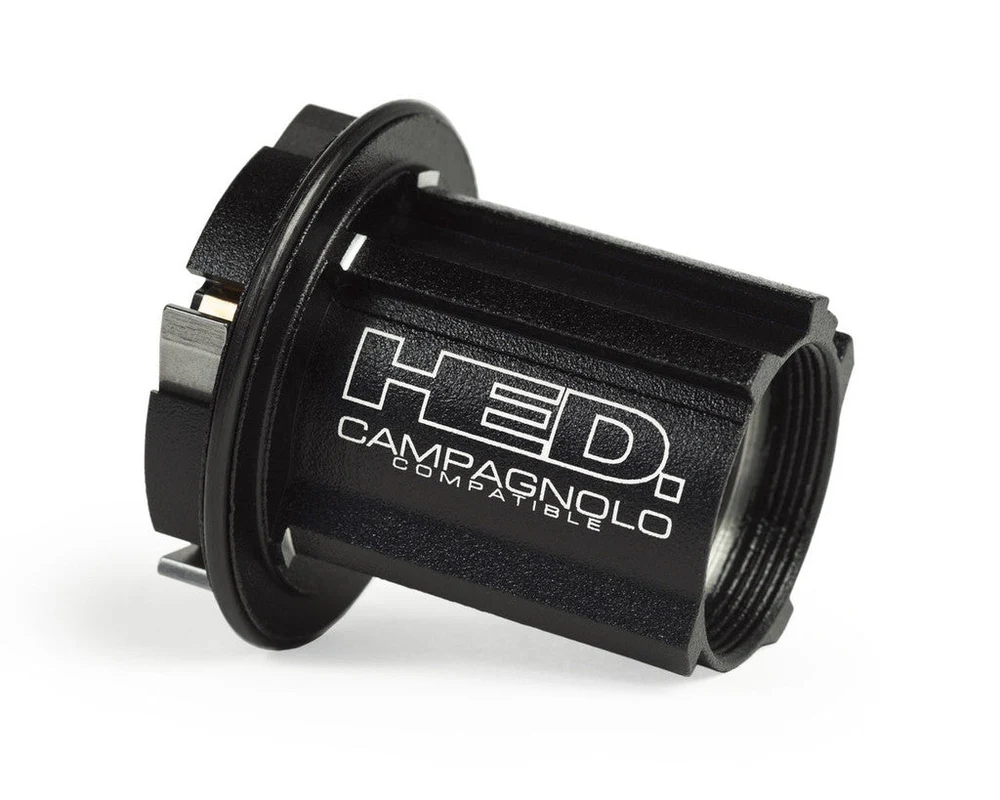

HU655 – Campagnolo 9, 10, 11, 12-speed *Discontinued

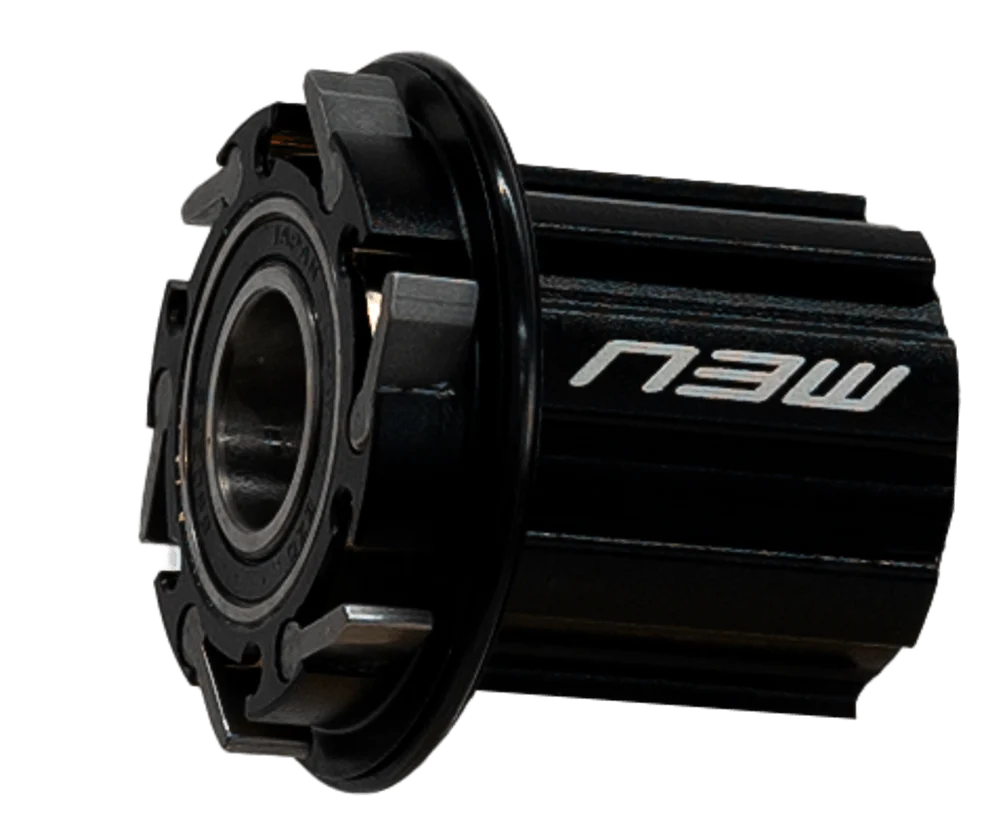

HU658 – Campagnolo N3W Ekar compatible only
Performance Disc Brake Hub 4-pawl GP Ardennes Performance / Vanquish Performance / Emporia Performance wheels take a special 4-pawl cassette body not used on any other HED wheels.
HU652 – 4-pawl – Shimano HG/SRAM 11, 12-speed
HU654 – 4-pawl – Sram XDR Road 12-speed
HU657 – 4-pawl – Shimano Micro Spline 12-speed
HU659 – 4-pawl – Campagnolo N3W Ekar compatible only
